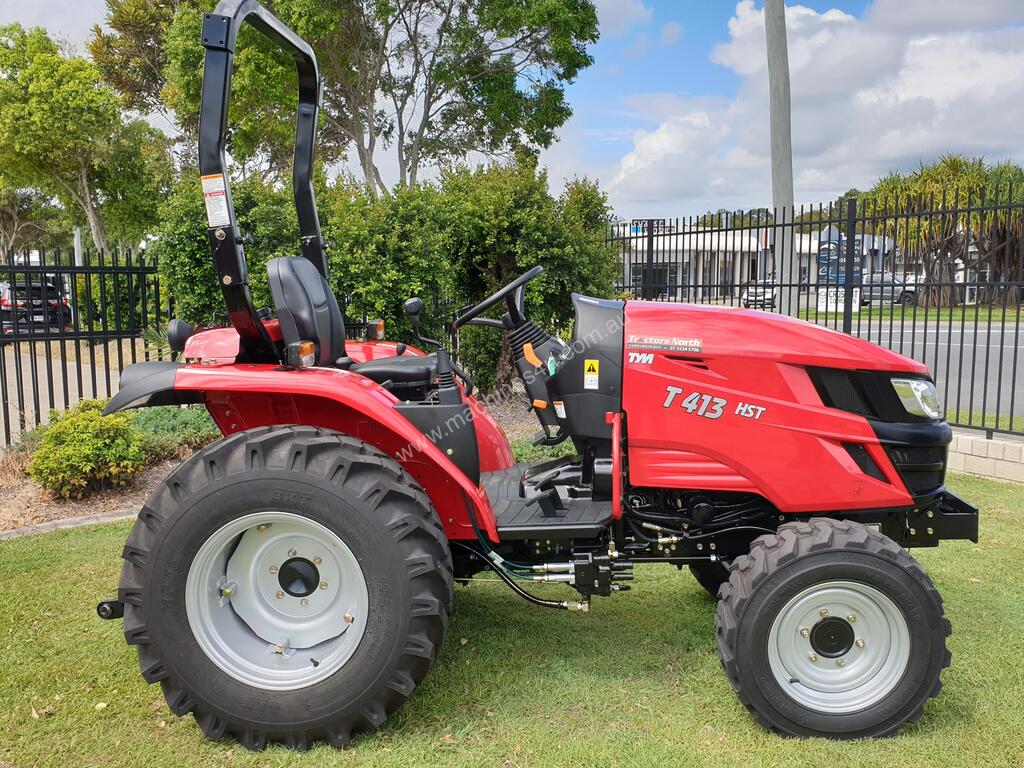

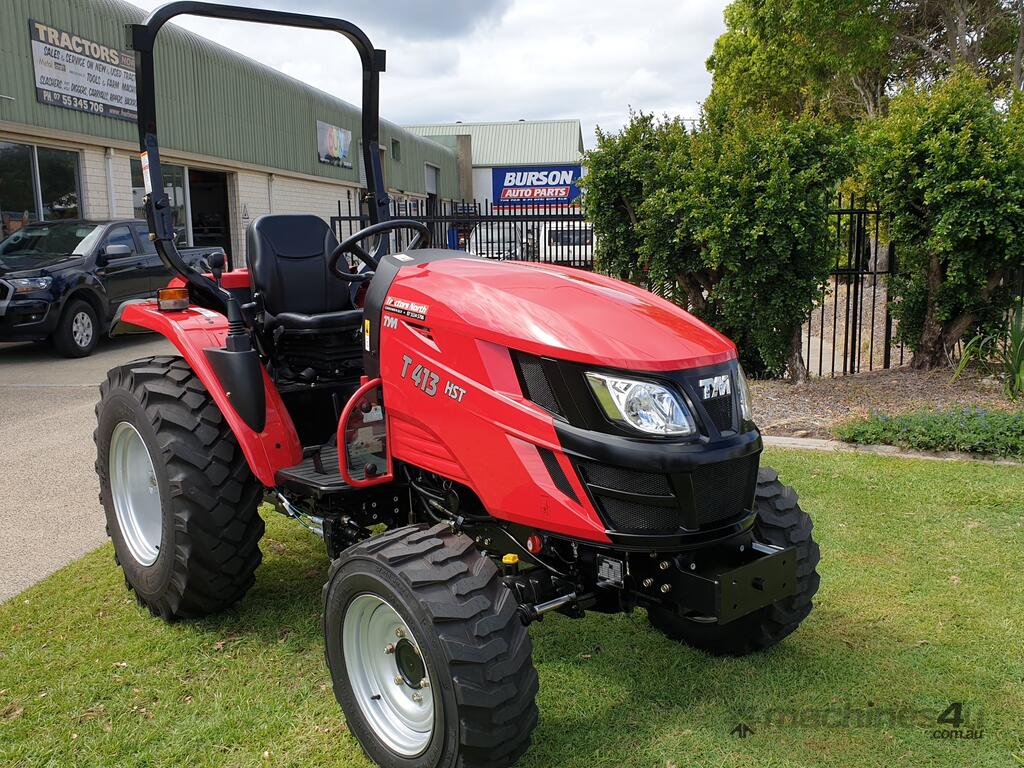

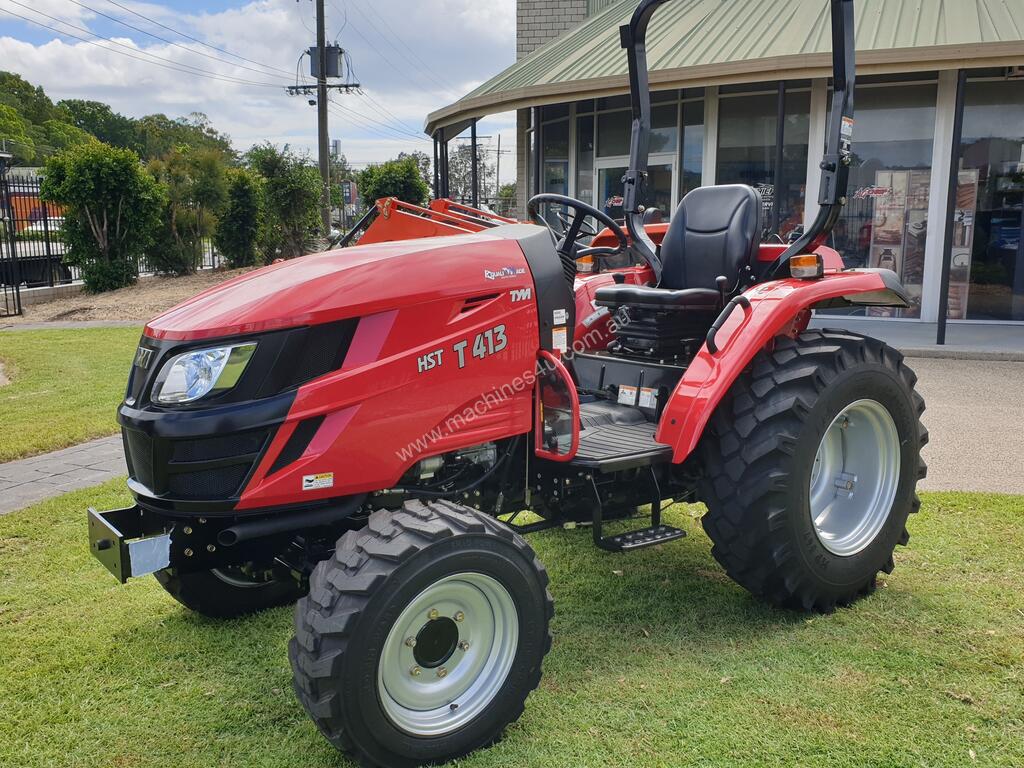

TYM T413 TRACTOR

MURWILLUMBAH SOUTH, NSW

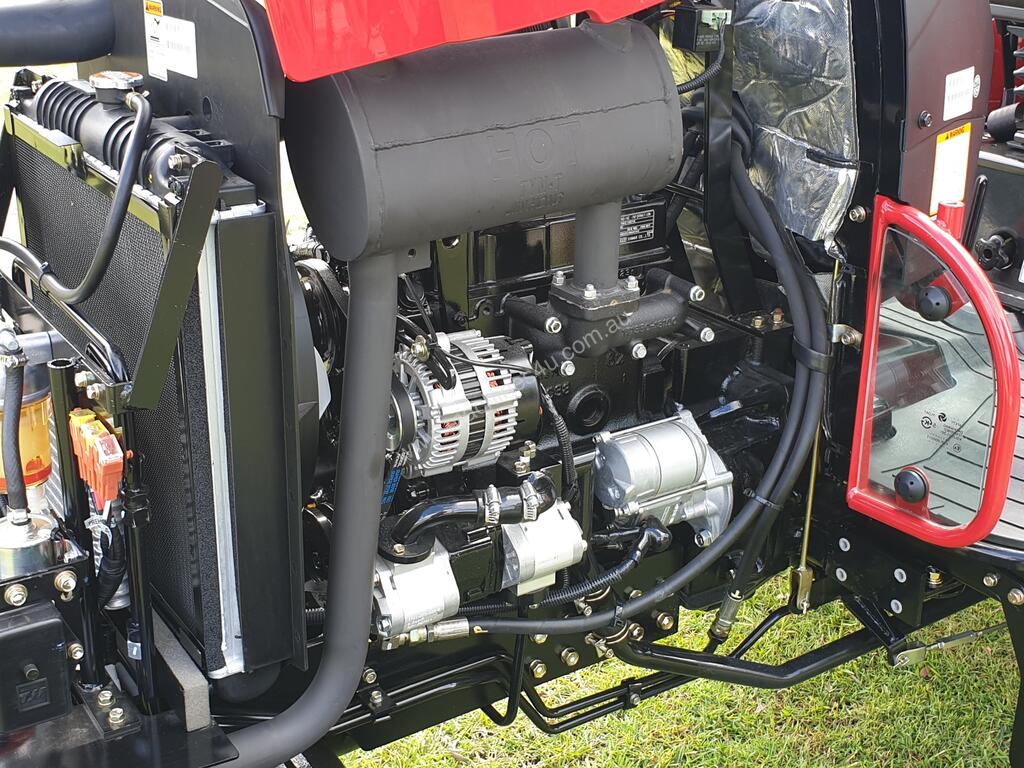

Powered by 38.4hp Yanmar naturally aspirated 3 cylinder water-cooled Diesel engine

Yanmar Diesel is a global engine manufacturer of quality, giving you the confidence in relaibility and after-sales support
Engine certified to meet the stringent Tier III engine and noise emission standards
1642cc engine, resulting in high torque for serious work
Dual dry element air cleaner for Australia's dusty conditions
34 litre fuel tank capacity with easy access at rear side will provide for many working hours between refueling
DRIVELINE
T503 Transmission
The tractor weight of 1390kg (ROPS version) is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is in part, a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation
See optional front end loader for details
TYM T413 HST Pedals
The Hydrostatic drive transmission is controlled by two side by side pedals for easy forward and reverse directional changes
3 Ranges with range leverlocated to operator's right
0-27km/h maximum speed
TYM T413 Front Axle
The heavy duty front axle performs in tough working conditions and handles loads with ease
A long wheel base and wide stance increases stability in all conditions
TYM T413 Diff Lock
Rear axle with diff-lock for difficult traction situations
4WD and the diff -lock provides better traction, control and performance
4WD mode is controlled by a lever on the left hand side of the operator
Inboard wet disc brakes can be split for indpendent left and right side braking to assist turning in tight situations
PTO, HYDRAULICS & LINKAGE
TYM T413 Linkage Remote
Control for the linkage and hydraulic remotes are on the right-hand side
The 3-point linkage with postition control
Hydraulic remotes are ideal for the operation of log splitters, post hole augers and a wide range of implements
TYM T413 Linkage
1 set of double-acting hydraulic remotes
Category 1 3-point linkage with 1200kg lifting capacity gives the tractor great versatility and range of applications
Adjustable lower link arms
TYM T413 PTO
The PTO driveline is a simple and direct design for high efficiency and power
The PTO clutch is an independant oil immersed clutch pack for long life with simple push-button operation
Auto-PTO function automatically disengages the PTO when the linkage is raised, and automatically reengages when lowered; a great functin that simplifies repeated row work and prevents implement damage
COCKPIT

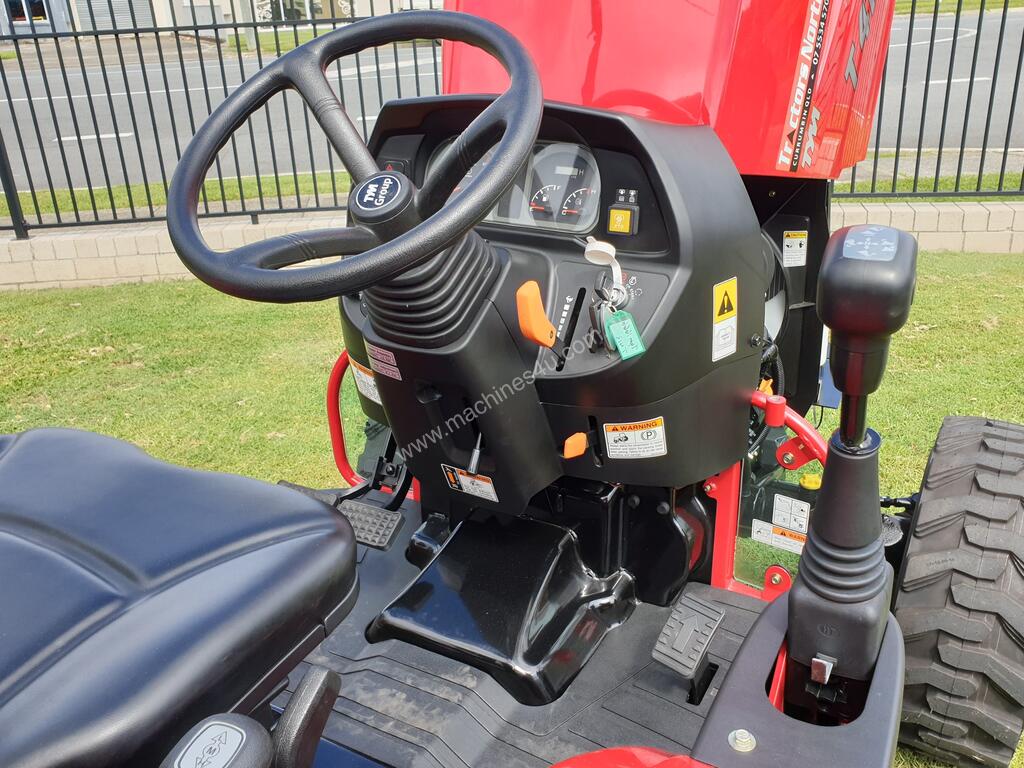

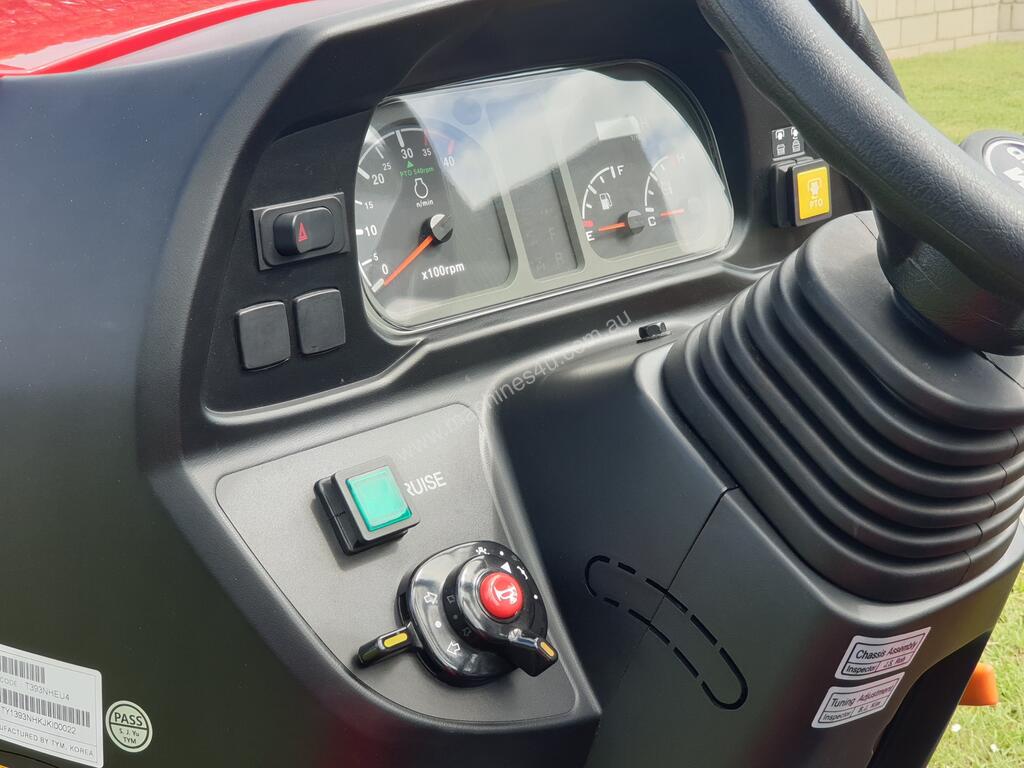

TYM T413 Cockpit Dash
Ergonomic design with easy to reach controls
Easy to read instrument panel
Titlable steering wheel
Combination switch controls lights and indicators
Digital hour metre display
PTO On/Off Switch
Cruise control
TYM T413 Tiltable Steering Wheel
Tiltable steering wheel
TYM T413 Joystick
Fully integrated joystick for control of front end loader with electric button for third function operation (when fitted)
See optional front end loader for details

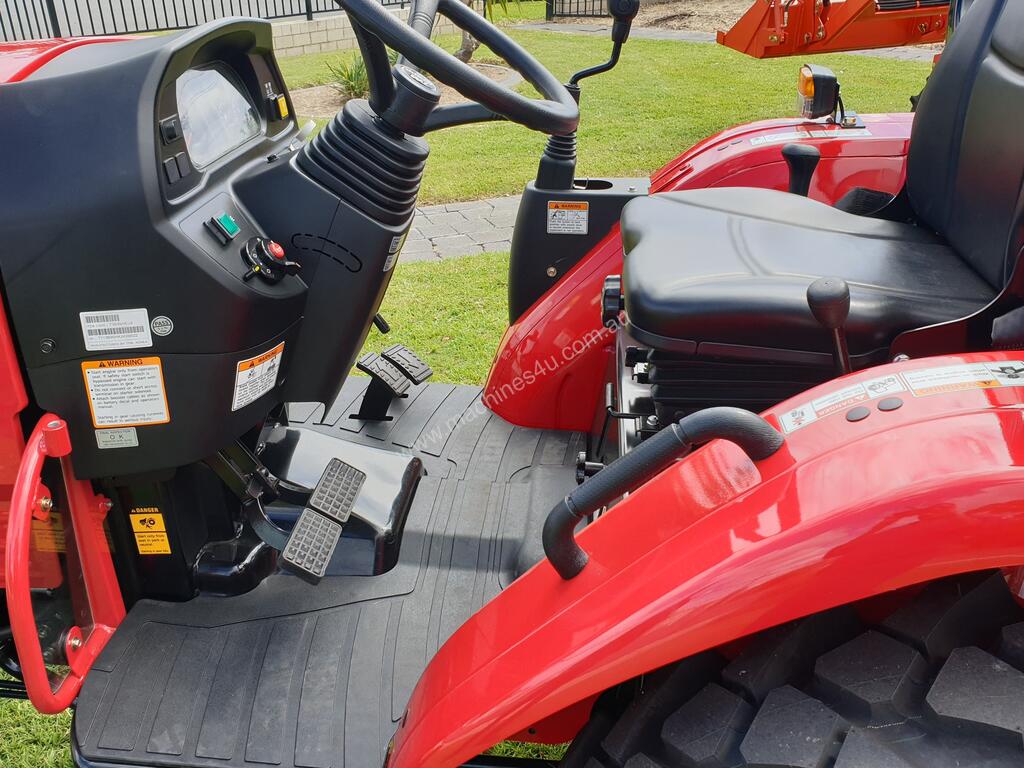

TYM T413 Flat Platform
Wide distance between rear mudguard and dash panel provides easy access on and off the tractor
Uncluttered flat floor without trip hazards is the largest surface area in its class
Rubber floor mat reduces noise and provides an easy to maintain surface
TYM T413 Adjustable Suspension Seat
Adjustable suspension seat for comfort

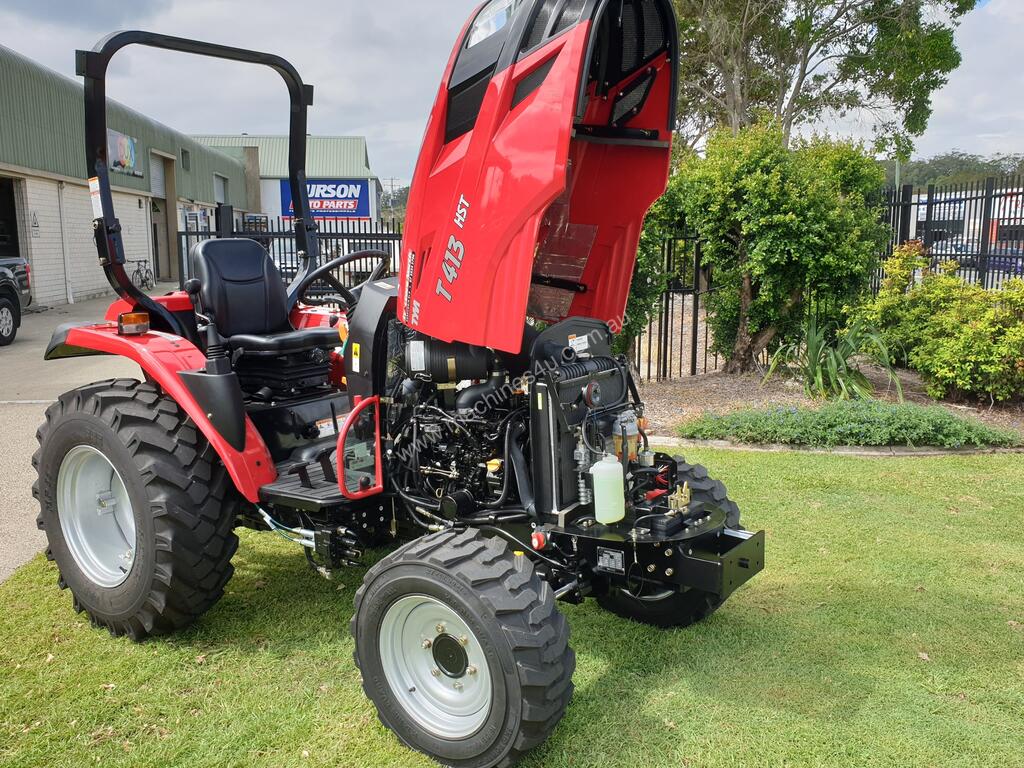

TYM T413 Easy Access 1 Piece Bonnet
Easy access to all maintenance areas with pop-up 1 piece bonnet
OPTIONS
FRONT END LOADER
TYM T413 Optinal Front End Loader
Level lift front-end loader ideal for materials handling and utility work around the farm
See this link for details and specifications on the optional front end loader
TYRES
TYM T413 Rear Tyre
Choice of agricultural, industrial or turf tyres
SPECIFICATIONS
T413 HST
Engine Type Yanmar
Number of Cylinders 3
Engine Power (hp/kW) 38.4/28.6
Engine Torque (Nm) 142.7
Transmission Type Hydrostatic
Number of Transmission Ranges 3
Side-by-side Forward / Reverse Transmission Pedals Tick
Cruise Control Tick
Maximum Speed (km/h) 27
PTO Speed (rpm) 540
Independent Push Button PTO engagement Tick
3-point Linkage Lift Capacity (kg) 1200
Number of Hydraulic Remotes 1 set
Integrated Joystick Control for Front-end Loader
Price with 4 in 1 loader attachment $30,600 Inc GST.
