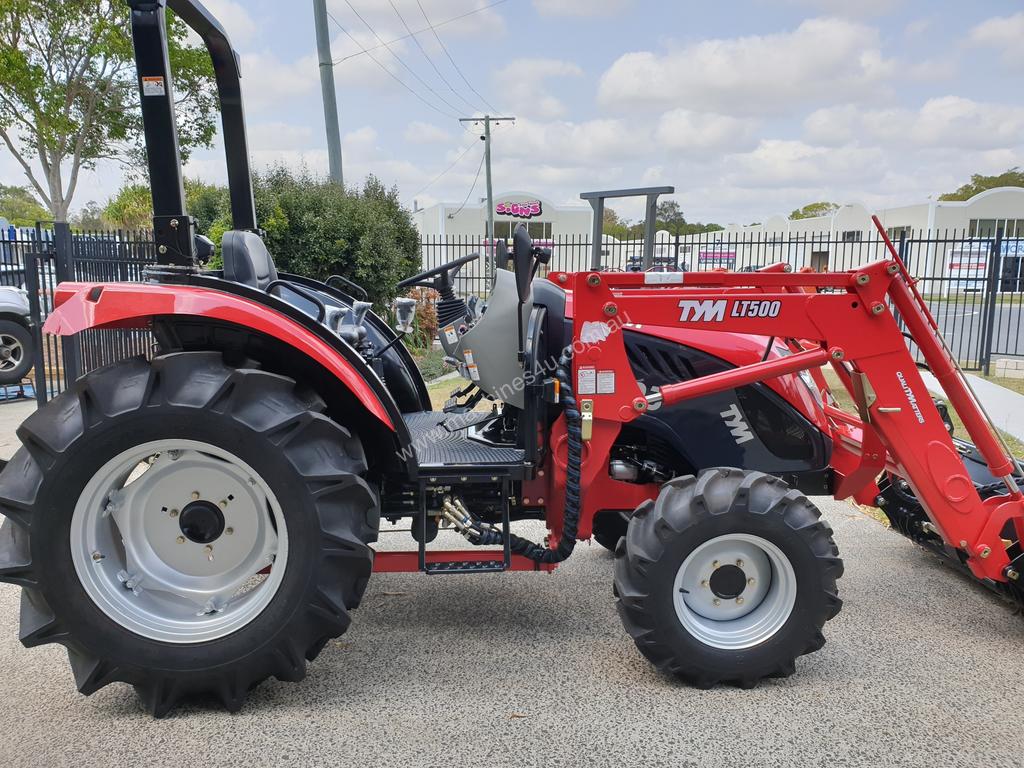

Brand New 50 HP TYM tractor with 4 in 1 loader

MURWILLUMBAH SOUTH, NSW

Powered by 50hp Perkins naturally aspirated 4 cylinder water-cooled Diesel engine
Perkins Diesel is a global engine manufacturer of quality, giving you the confidence in reliability and after-sales support
Engine certified to meet the stringent Tier III engine and noise emission standards
2216cc engine with 142.7Nm of torque at 1800rpm
A generous engine capacity of 2216cc, resulting in high torque for serious work
Dual dry element air cleaner for Australia's dusty conditions

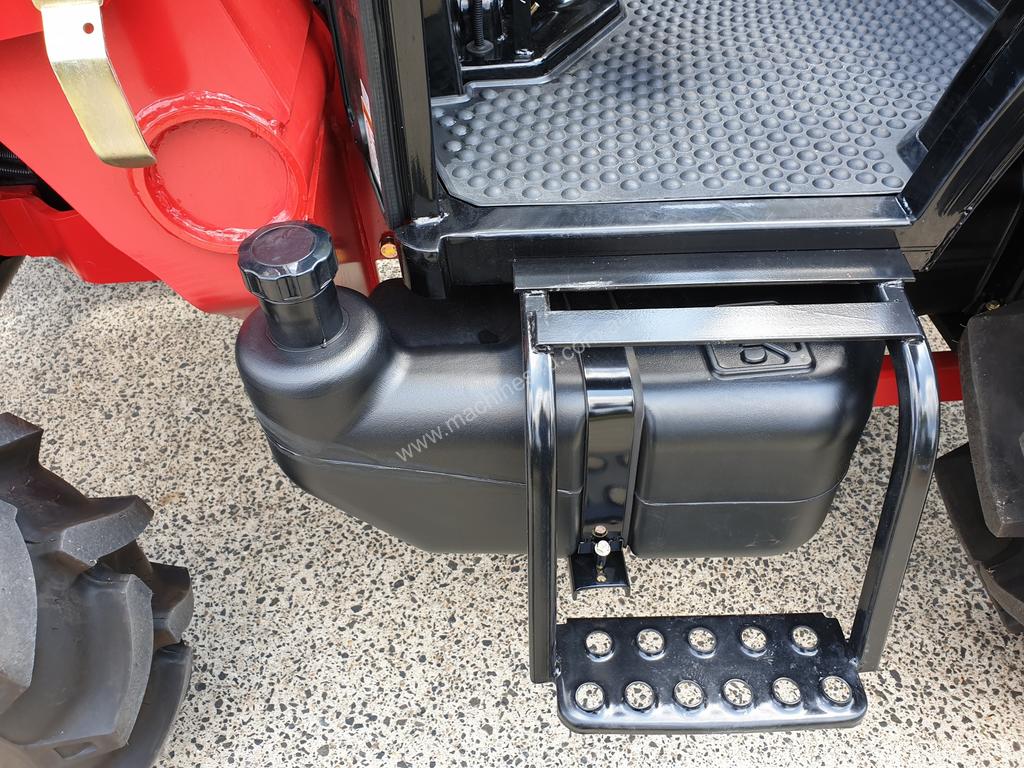

A large capacity 60 litre fuel tank for many working hours between refueling

DRIVELINE
T503 Transmission T503 Transmission
The tractor weight of 1710kg (ROPS version) is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is in part, a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation
See optional front end loader for details

TYM T503 Shuttle Shift Lever
Sychro Shuttle with lever on left side under the steering wheel ideal for front end loader operation
16 transmission speeds available between 0.6-30 KM/H
4 speed main gear lever
4 ranges with creeper reduction speeds
TYM T503 Front Axle
The heavy duty front axle performs in tough working conditions and handles loads with ease
A long wheel base and wide stance increases stability in all conditions
TYM T503 Manual Diff Lock
Rear axle with diff-lock for difficult traction situations
4WD and the diff -lock provides better traction, control and performance
4WD mode is controlled by a lever on the left hand side of the operator
TYM T503 Turning Brakes
Inboard wet disc brakes can be split for indpendent left and right side braking to assist turning in tight situations

PTO, HYDRAULICS & LINKAGE

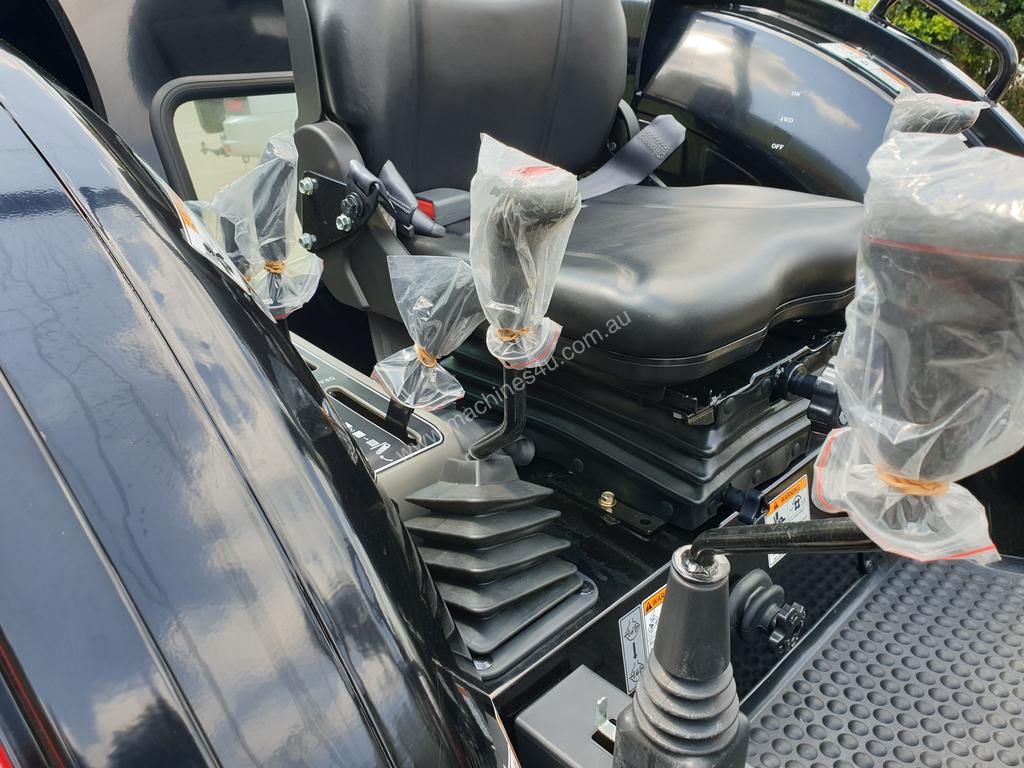

TYM T503 Remote Controls
Control for the linkage and hydraulic remotes are on the right-hand side
The 3-point linkage has postition and draft control
Draft control automatically lifts the ground engaging implement from the soil, when excessive load is experienced
Hydraulic remotes are ideal for the operation of log splitters, post hole augers and a wide range of implements

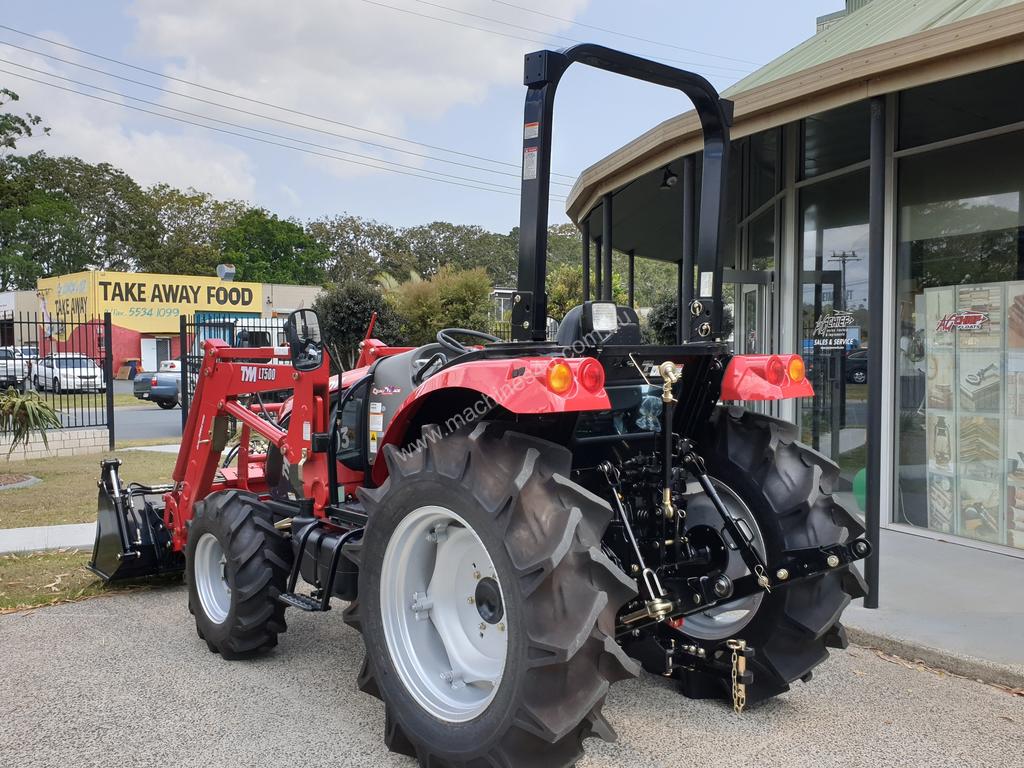

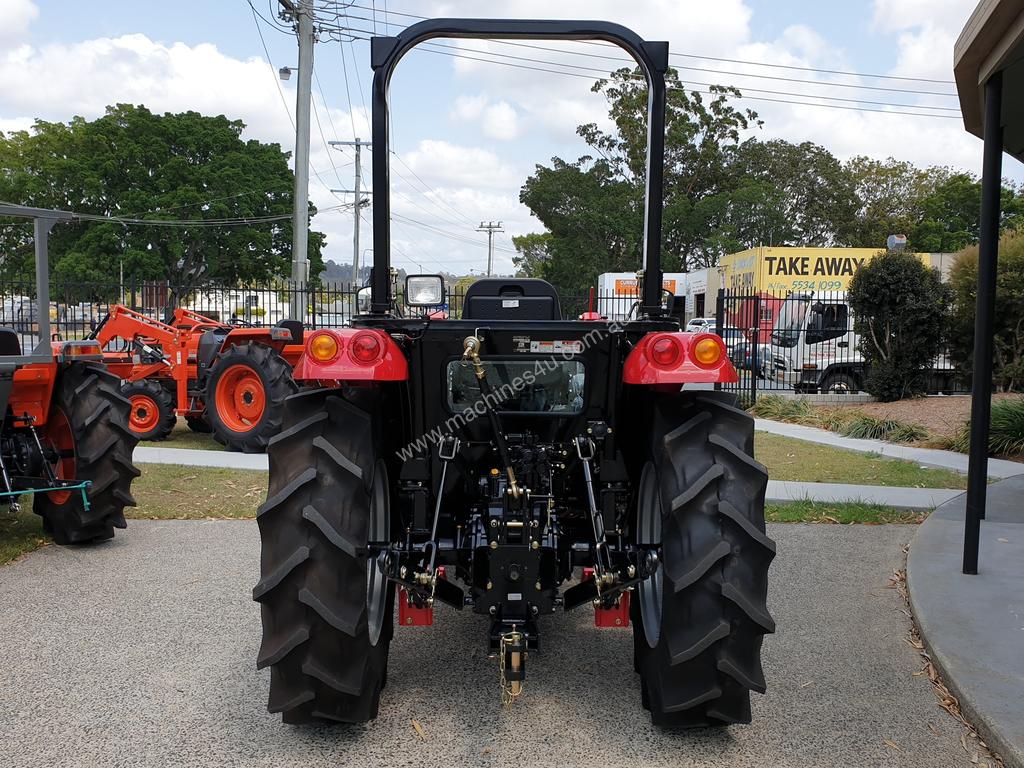

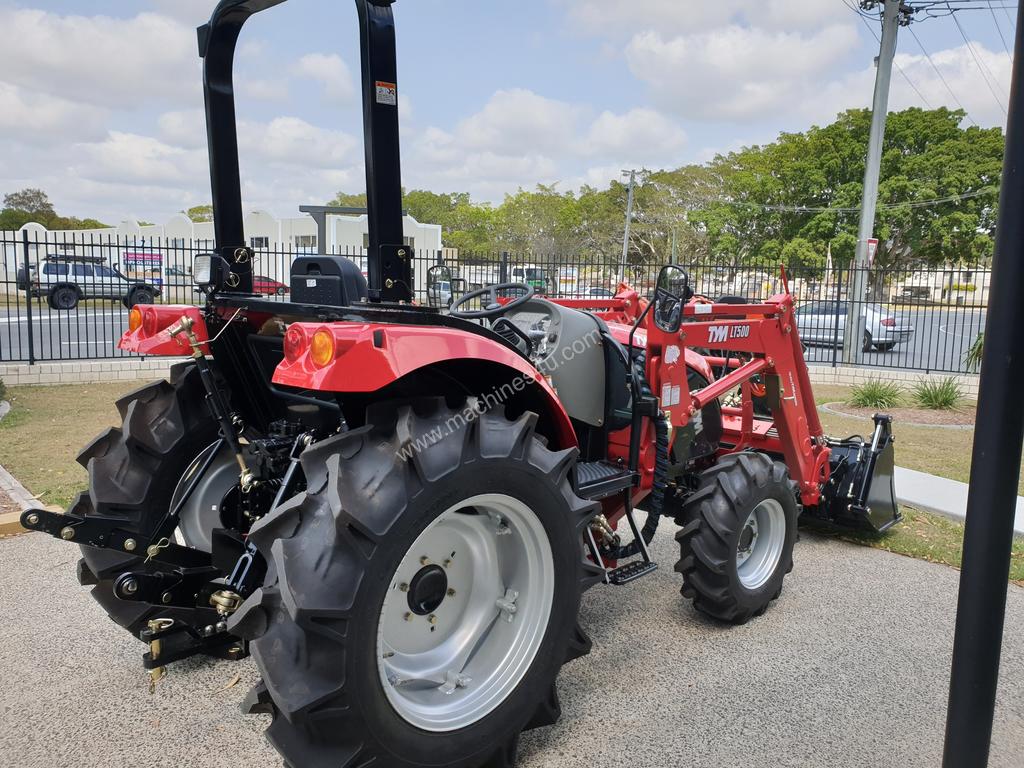

TYM T503 Rear
2 sets of double-acting hydraulic remotes
Category 1 3-point linkage with 1503kg lifting capacity gives the tractor great versatility and range of applications
Telescopic extendable lower link arms for easy implement connections
TYM T503 PTO TYM T503 PTO
The PTO driveline is a simple and direct design for high efficiency and power
The PTO clutch is an independant oil immersed clutch pack for long life with simple push-button operation
Auto-PTO function automatically disengages the PTO when the linkage is raised, and automatically reengages when lowered; a great functin that simplifies repeated row work and prevents implement damage

COCKPIT

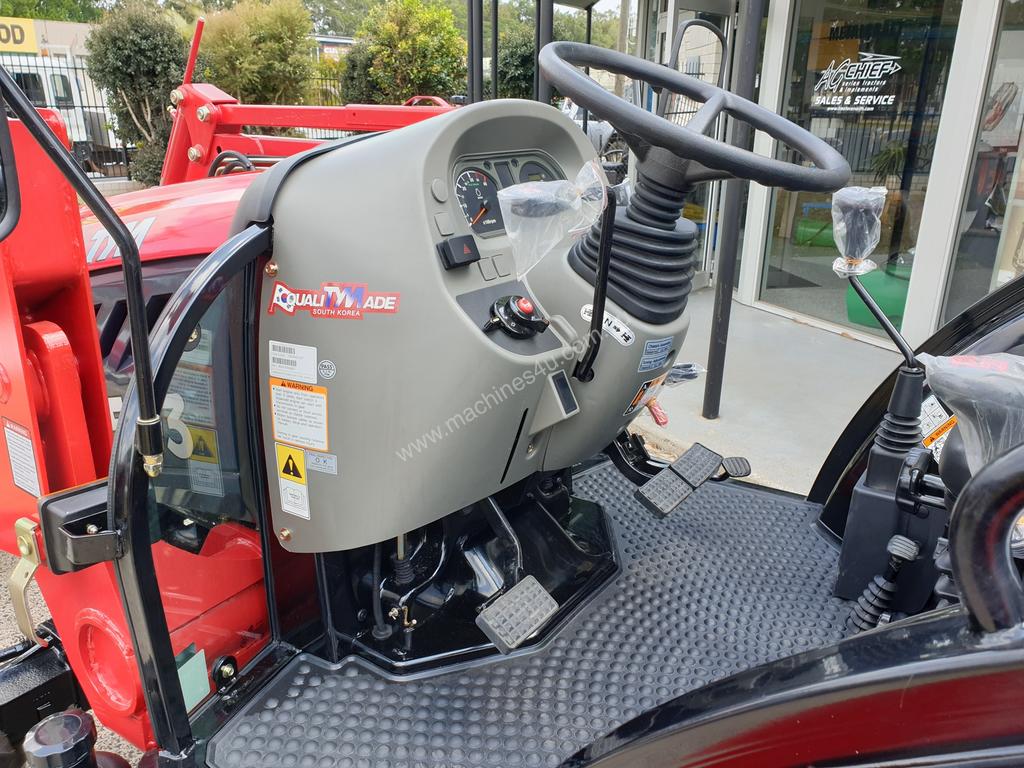

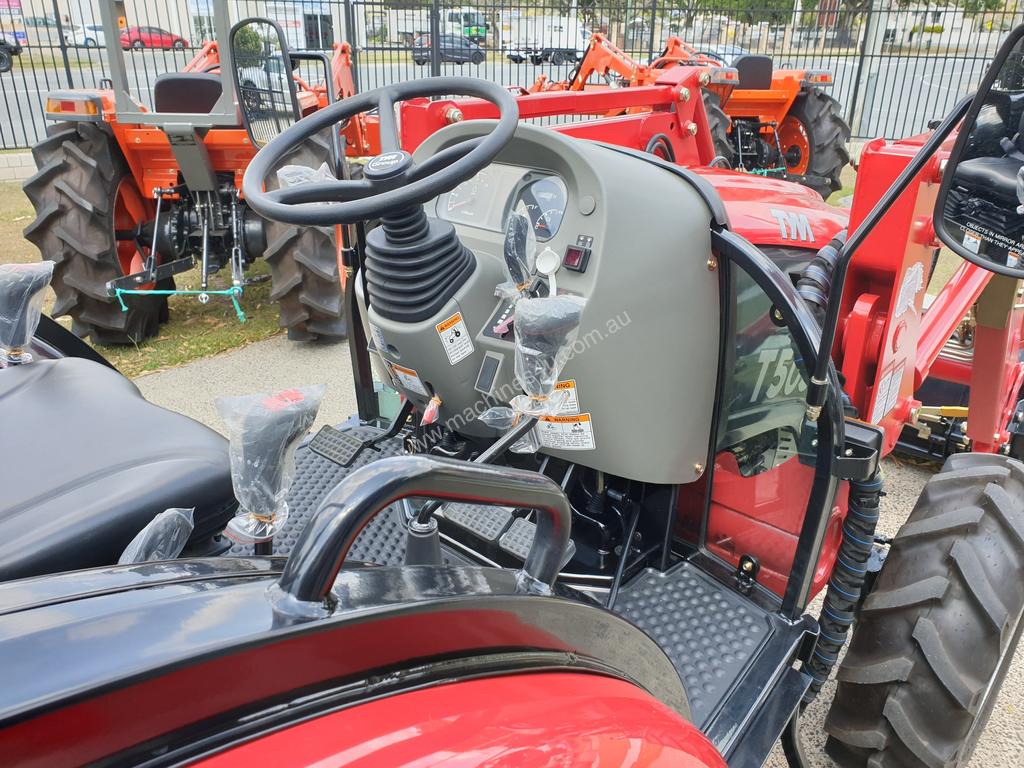

TYM T503 Dash
Ergonomic design with easy to reach controls
Easy to read instrument panel
Titlable steering wheel
Combination switch controls lights and indicators
Digital hour metre display

PTO On/Off Switch
TYM T503 Tiltable Steering Wheel
Tiltable steering wheel
T503 Joystick
Fully integrated joystick for control of front end loader with electric button for third function operation (when fitted)
See optional front end loader for details
TYM T503 Manual Floor
Wide distance between rear mudguard and dash panel provides easy access on and off the tractor
Uncluttered flat floor without trip hazards is the largest surface area in its class
Rubber floor mat reduces noise and provides an easy to maintain surface

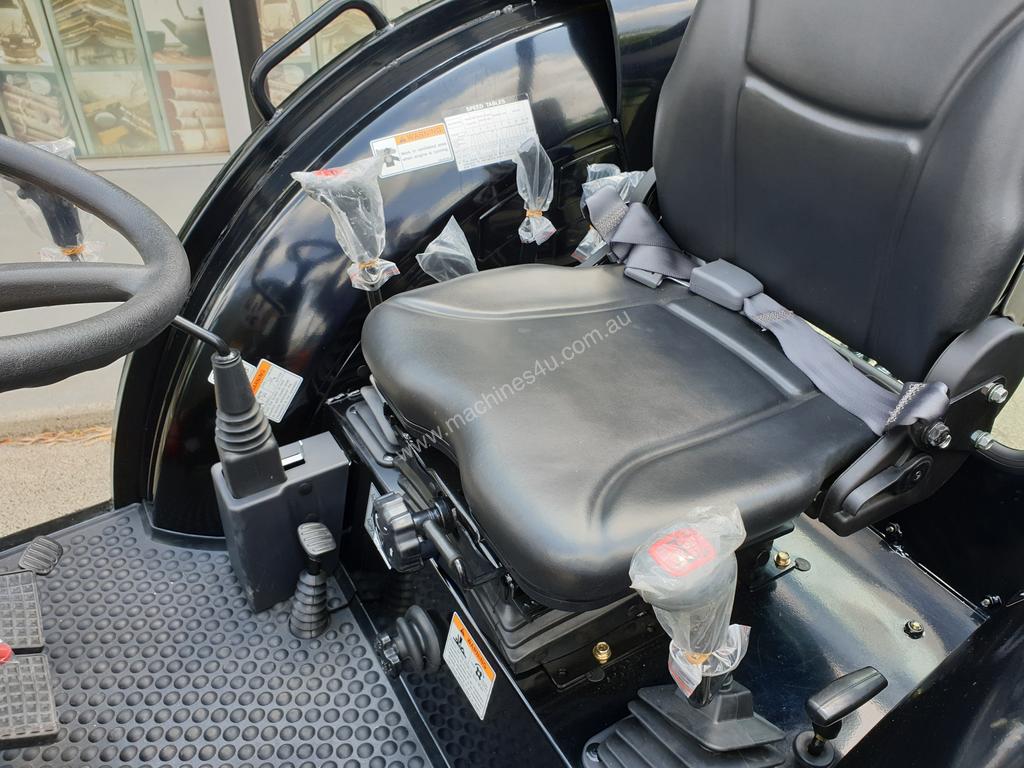

TYM T503 Adjustable Suspension Seat
Adjustable suspension seat for comfort

OPTIONS
FRONT END LOADER

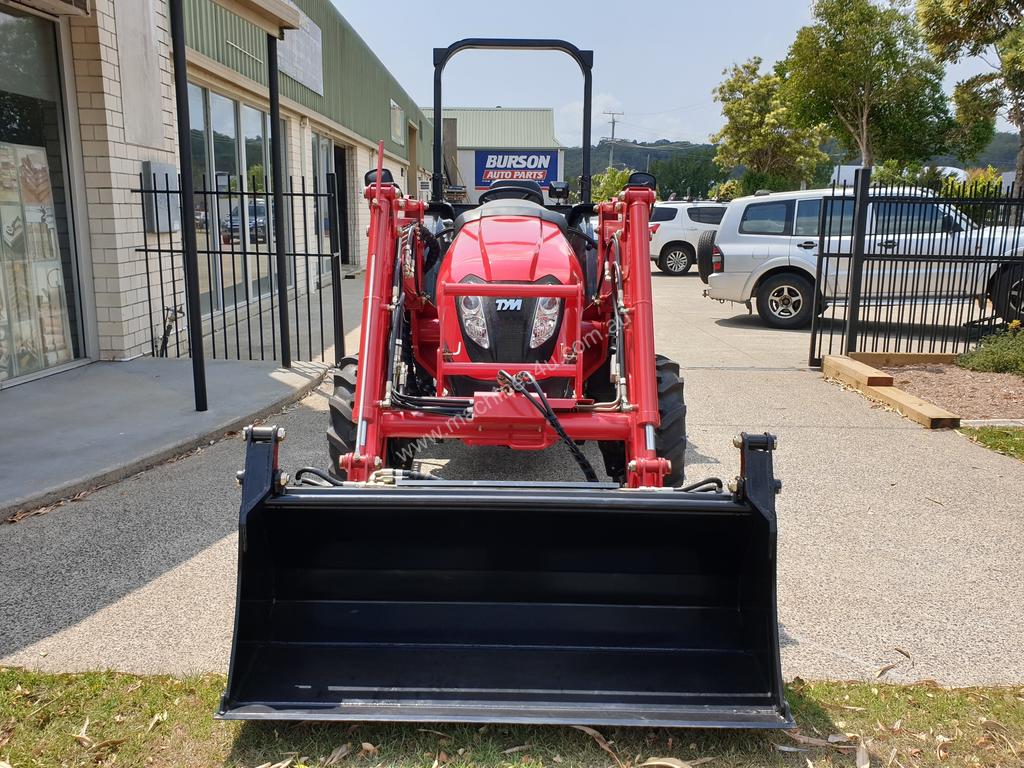

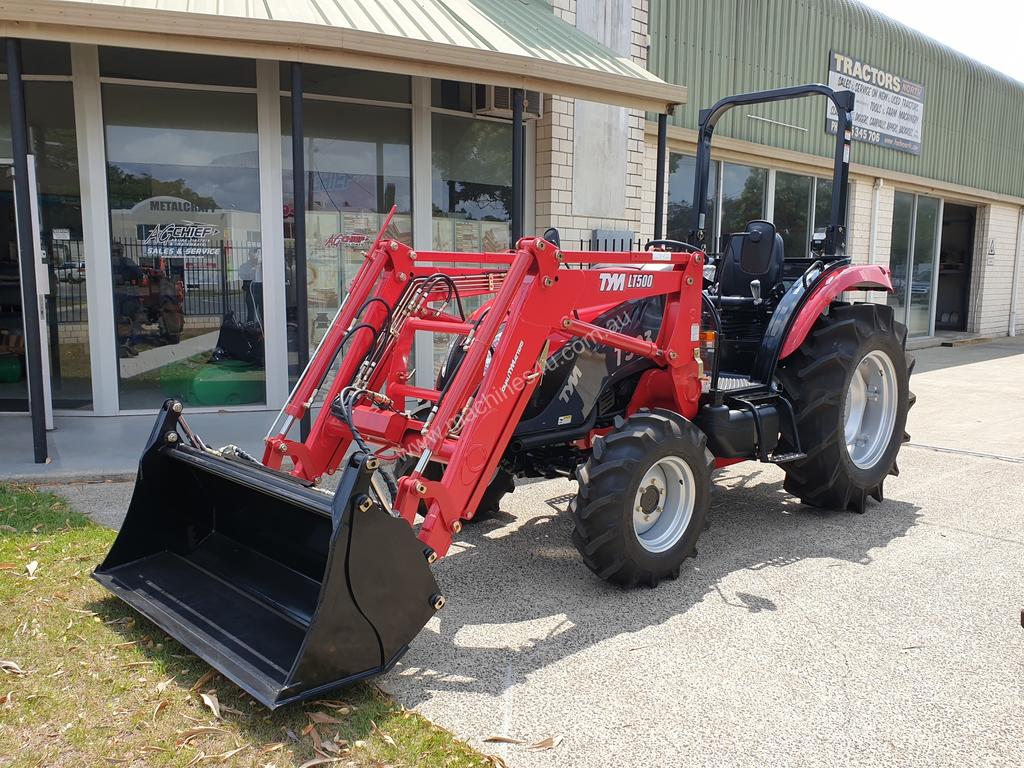

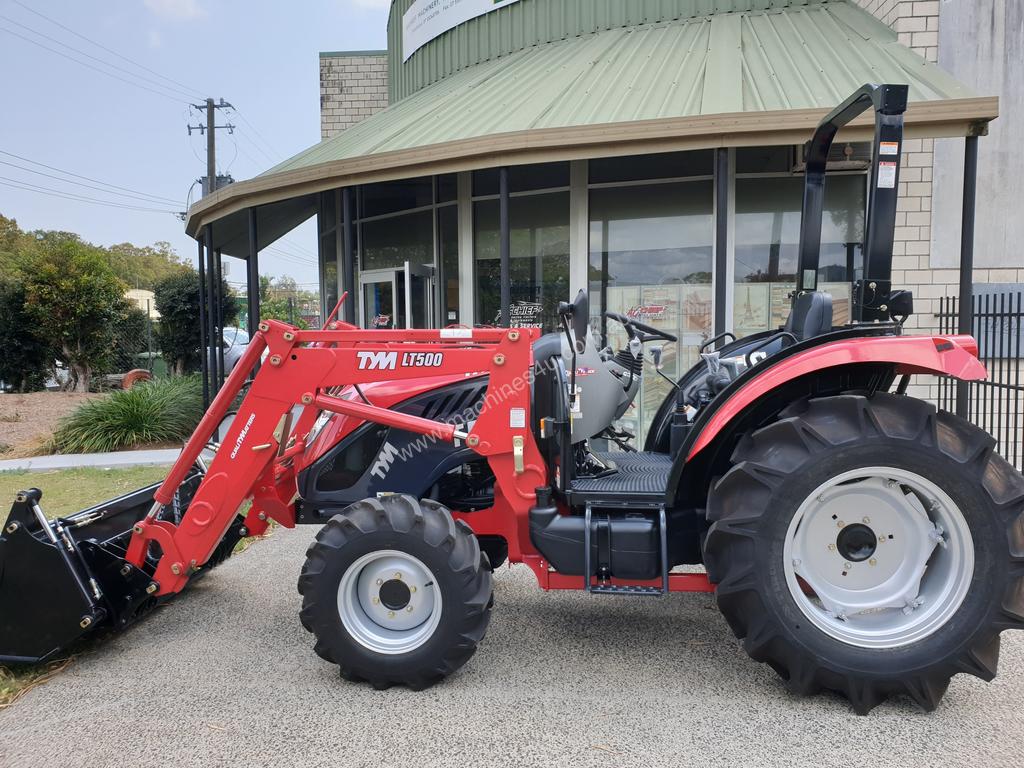

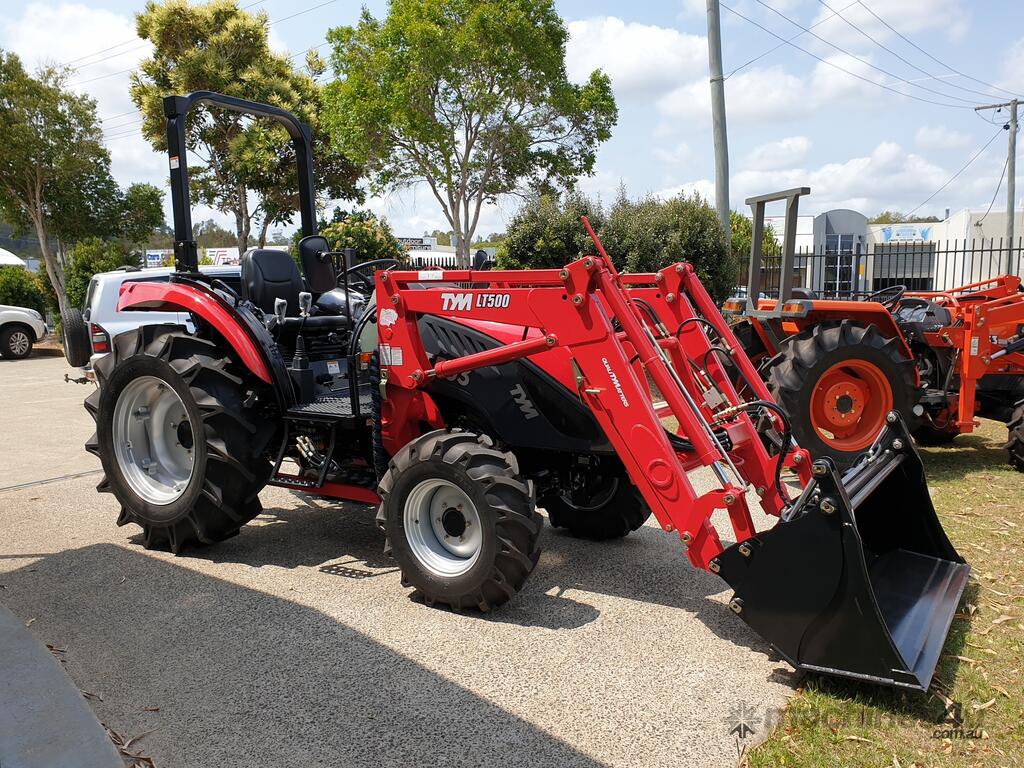

TYM T503 Optinal Front End Loader
Level lift front-end loader ideal for materials handling and utility work around the farm
See this link for details and specifications on the optional front end loader
